Motorola MVME130 Board

CPU

• 12.50MHz - will operate at 16.67MHz MC68020 MPU

Chipset

• MC68020 Microprocessor with 32-bit Address and Data VMEbus Interface
• Provision for MC68881 Floating Point Coprocessor (customer-supplied option)
• Provision for Demand Paged Virtual Memory Management Board (MMB) Implemented with Gate Array Technology - MVME131
• Two 28-pin JEDEC Sockets for up to 16Kb Onboard Static RAM
• VSB Interface Provides High-speed Data Path to/from Memory
• VMEbus Interface Allows User Configuration of Microcomputer System to Fit the Application
• VMEbus Interrupter, Interrupt Handler, and Arbiter Onboard
• Programmable Timer Module
• Dual Multiprotocol Serial I/O Ports
• Accepts MVME130bug Debug Monitor Firmware (optionally available)
• Two ROM Sockets Configured for Industry Standard 28-Pin HOM/EPROM devices. Four ROM Sockets Available when no Sockets are Devoted to RAM
• Broadcast Interrupt Capability for Multi-processor Synchronizing Applications

Memory

• The MVME130 Static Memory is implemented with two 28-pin industry-standard JEDEC sockets. The MVME130 will provide 16Kb of single-ported memory for the MC68020 local processor. However, if the user does not require the onboard memory, the two static RAM sockets can be reconfigured to accept EPROMS up to 512K in size.

Misc

• 4 Status LEDs (FAIL, HALT, RUN, SCON)
• 2 switches (RESET and ABORT).

Operating Systems

• Motorola System V/68 Unix R3 V1
• Motorola System V/68 Unix R3 V2
• Motorola System V/68 Unix R3 V3
• Motorola System V/68 Unix R3 V4
• Motorola System V/68 Unix R3 V5
• Motorola System V/68 Unix R3 V6
• Motorola System V/68 Unix R3 V7

Public References (in year 2014)

Title	Local file	Motorola ID

Known MVME130/MVME131/MVME132 Documentation (in year 2014)

Motorola ID	Title

Available MVME131 models

Model	CPU clock	Misc
MVME130	16.67MHz
MVME131XT	16.67MHz	MMB851,Cache,MC68881 FPU
MVME131DOF	16.67MHz	MMB851,MC68881 FPU
MVME132XT	16.67MHz	MC68851 PMMU,Cache,MC68881 FPU
MVME132DOF	16.67MHz	MC68851 PMMU,MC68881 FPU

MVME130/131/132 Pictures

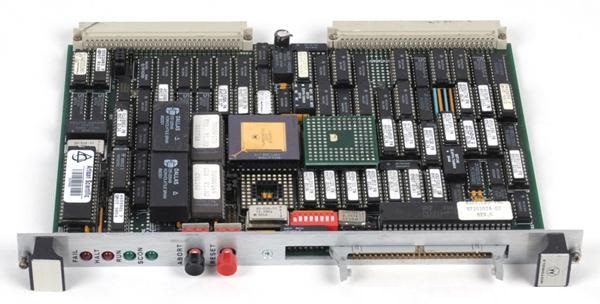

MVME130

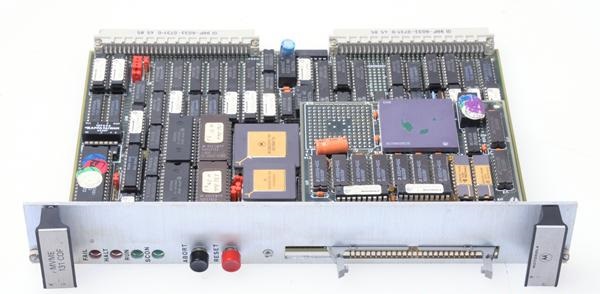

MVME131COF

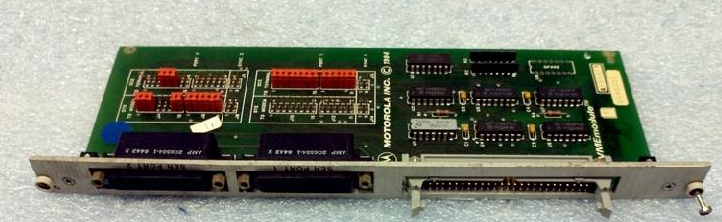

MVME707 Distribution board
