Motorola MVME134 Board

CPU

• 16.67MHz or 20.00MHz for MVME134FP MC68020 MPU

Chipset

• MC68020 Microprocessor with 32-bit address and data 16.67MHz (20.00MHz for MVME134FP)
• MC68851 Paged Memory Management Unit 16.67MHz (20.00MHz for MVME134FP)
• Four 28-pin JEDEC sockets for ROMs/PROMs/EPROMs/EEPROMs
• Three 8-bit programmable timers for tick and watchdog functions
• Battery backup real-time clock (MK48T02)
• 2040 bytes of battery backup SRAM (on the MK48T02)
• Front panel asyncrhonous DB25 serial debug RS-232C port (on MC68901 MFP)
• DUal multi protocol (synchronous/asynchronous) serial ports (Z8530)
  one RS-232C (port B)
  one RS-485/RS-422 (port A)

• VMEbus system controller functions with level 3 arbiter
• Single level bus requester (level jumper selectable)
• VMEbus interrupter (selectable level only, with status ID $FF only)
• VMEbus interrupt handler for all seven levels
• Remote reset through edge connector P2
• Five-position software-readable header; part of Module Status Register (MSR)

Memory

• 4MB of shared local Dynamic RAM, 32-bits wide, accessible from VMEbus

Misc

• 4 Status LEDs (FAIL, HALT, RUN, SCON)
• 2 switches (RESET and ABORT).

Operating Systems

• Motorola System V/68 Release 3 Version 4
• Motorola System V/68 Release 3 Version 5
• Motorola System V/68 Release 3 Version 6
• Motorola System V/68 Release 3 Version 7
• Motorola System V/68 Release 3 Version 8

Public References (in year 2014)

Title	Local file	Motorola ID
MVME134 VMEmodule 32-Bit Monoboard Microcomputer User's Manual	134_d1.pdf	MVME134/D1

Known MVME134 Documentation (in year 2014)

Motorola ID	Title
MVME134/D1	MVME134 VMEmodule 32-Bit Monoboard Microcomputer User's Manual
MVME134/D2	MVME134 VMEmodule 32-Bit Monoboard Microcomputer User's Manual
MVME134BUG	MVME134 Debug Monitor User's Manual
MMVME134BUG/D1	MVME134BUG 134Bug Debugging Package User's Manual
MVME134BUG/L1	MVME134Bug Bugs in Firmware Customer Letter
MVME134V68/S1	MVME134Bug Source Code - SYSTEM V/68

Available MVME134 models

Model	CPU clock
MVME134	16.67MHz
MVME134FP	20.00MHz

MVME134 Pictures

coming soon

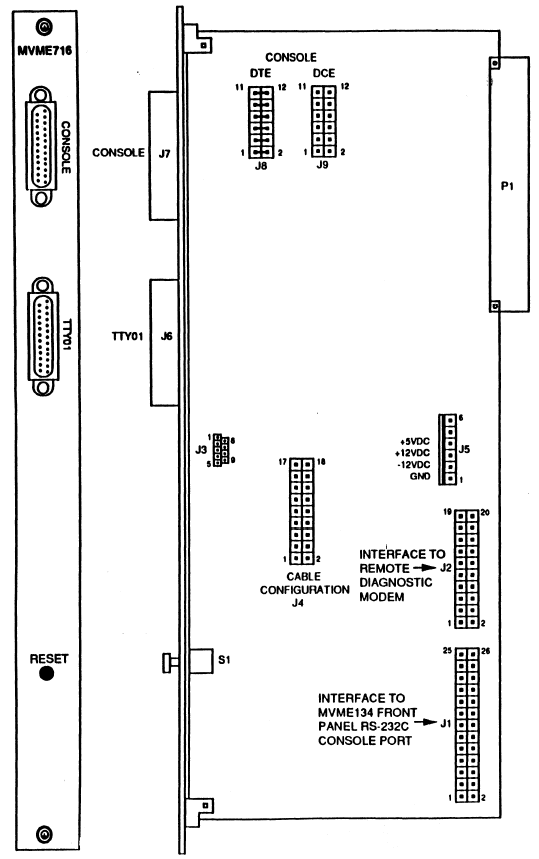

MVME716 Transition board
